Openbound - Characters

This article focuses on character creation in the Sburb game engine. A character is anything the player can become or anything that can follow the player. As the name entails, this is usually an actual character, like Meenah and Karkat in the sample. They can move around the world and interact, and have the necessary animations for that.

Table Of Contents

• Overview
• Basics
  • Assets
  • Dependencies
  • Rooms
  • Sprites
  • Animations
  • Characters
  • Actions
  • Dialog
  • Dialog sprites
  • Triggers
  • Paths
  • Templates
  • Game State
  • Effects
• Good practice
• Advanced
  • Text colours
• Production
  • Build
  • Release

Structure

It is generally good practice to place character definitions in separate files, like rooms. The official Openbound games use the levels/[PROJECT]/chars/ directory, so I recommend that. Let us say that we are creating Meenah here, though she already exists in the sample project. The file that contains her definition would then be levels/[PROJECT]/chars/meenah.xml.

File

A character file commonly contains both the character definition, dialogue sprite definitions, and the common command that allows the player to "be" them. A complete file example is included at the bottom of this tutorial. For now, I will cover only the most basic character definition. Below is an example:

<sburb description='meenah'>
  <classes>
    <character class='meenah' name='meenah' sx='-50' sy='-115' sWidth='100' sHeight='130' width='35' height='25' sheet='meenahSheet' state='walkFront' facing='Front'></character>
  </classes>

  <assets>
    <asset name='meenahSheet' type='graphic'>chars/meenah/meenah.png</asset>
  </assets>
</sburb>

Sprite sheet

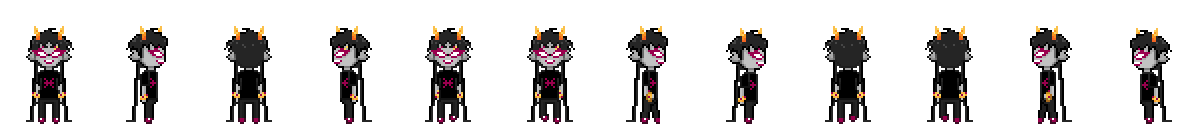

If you have read the assets section, you will already know how the asset definition works. This asset, however, is a sheet containing several sprites, rather than a single illustration. Meenah's sprite sheet looks like this:

The character sprite sheets all follow the exact same format. The order is as follows, from left to right:

• Idle (down)
• Idle (right)
• Idle (up)
• Idle (left)
• Walk (down) frame 1
• Walk (down) frame 2
• Walk (right) frame 1
• Walk (right) frame 2
• Walk (up) frame 1
• Walk (up) frame 2
• Walk (left) frame 1
• Walk (left) frame 2

The order of sprites must match exactly.

While the spritesheet can be any size you wish, the area attributed to each sprite must be the same. For example, Meenah's sprite sheet is 1200 pixels wide and 130 pixels tall, and a sprite sheet contains 12 sprites. Therefore, the area attributed to each sprite is 100 pixels wide and 130 pixels tall.

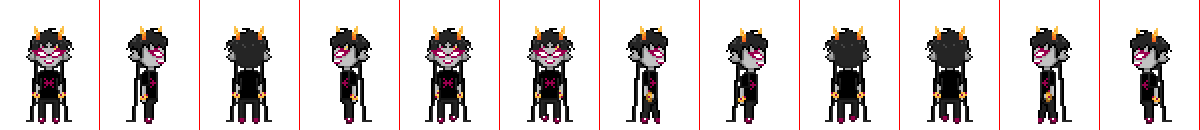

The illustration below visualizes this by placing a red line along the right side of each sprite to show you the exact size of them. As you can tell, Meenah is roughly centered in all of them.

You may also notice that each of Meenah's sprites are 2 times their actual pixel size. This applies to all graphic assets and is not so more detail can be added.

The reason this is done is because of HTML5's upscaling algorithm, which smooths out pixel art. To keep the pixel art crisp and clear, all sprites must be rendered 1:1. This is not usually a problem, but Openbound wants the sprites to be larger and clearer on the screen, so they prefer everything to be rendered at 2 times the size. To keep the same look, I recommend that you abide by this rule, as well.

Character

Well, now that you have your 12 sprites placed in order of their animations with equal spacing in a sprite sheet and doubled it in size, it's time to start defining your character.

<sburb description='meenah'>
  <classes>
    <character class='meenah' name='meenah' sx='-50' sy='-115' sWidth='100' sHeight='130' width='35' height='25' sheet='meenahSheet' state='walkFront' facing='Front'></character>
  </classes>

  <assets>
    <asset name='meenahSheet' type='graphic'>chars/meenah/meenah.png</asset>
  </assets>
</sburb>

Here, the <character> element is defined in the <classes> element, which has not yet been covered. It is a simple template system, which you can read more about here. For now, just know that it allows easy reuse of the character.

The <character> element for Meenah is defined as such:

<character class='meenah' name='meenah' sx='-50' sy='-115' sWidth='100' sHeight='130' width='35' height='25' sheet='meenahSheet' state='walkFront' facing='Front'></character>

If your spritesheet is the same size as the sample, and your character sprites are not wildly different in size or positioning, you will probably not have to change sx., sy, sWidth, sHeight, width, or height.

Additionally, unless you want your character to be facing a diffferent location on start, you will not need to change state and facing.

Attributes

class

The class attribute is not because of the <character> element, but rather because of the <classes> element. You can read more about it in the templates section. For now, I recommend using the value as the name attribute, as they do in the sample.

name

The name attribute is, as with assets and everywhere else, a simple way to refer to the character element from other places in SBURML. Simply naming it the character name should do. Here, it is meenah.

sx

sx is the offset from the left of each sprite in the spritesheet to their center of the collision box. Here, -50 is used to indicate that each the collision box is roughly centered 50 pixels from the left, as the width of each sprite area here is 100.

sy

sy is the offset from the top of each sprite in the spritesheet to the location of their collision box. Here, -115 is used to indicate that each the collision box for the character is placed near their feet. This allows them to walk closely in front of objects without walking into objects in front of them.

sWidth

sWidth is the width of each sprite area on the sheet. This should be clear if you have read the spritesheet section above.

sHeight

sHeight is the height of each sprite area on the sheet. Generally just the height of the sheet. This should be clear if you have read the spritesheet section above.

width

width is the width of the collision box on the character.

height

height is the height of the collision box on the character.

state

state is the initial state of the character. The most common default is walkFront. This default state is mainly used for the NPC characters, which "walk in place" instead of simply idling with a static sprite. This makes them seem more alive.

Options are idleFront, idleBack, idleLeft, idleRight, walkFront, walkBack, walkLeft, and walkRight.

facing

facing, as the name entails, is the direction that the character is facing.

Options are Front, Back, Left, and Right.

sheet

sheet is the name of the spritesheet asset. In the sample, the name of the spritesheet is defined as meenahSheet. I recommend this structure of [CHARACTER]Sheet, where [CHARACTER] is the name of the <character> element.

Usage

Once a character has been defined in a <classes> section, they can be used by like so:

<sburb description='first room'>
  <rooms>
    <character class="meenah" x='500' y='500'></character>
  </rooms>
</sburb>

Note the x='500' and y='500' attributes on the character element, which define its position in the room. They are not defined on the template, as they are extremely likely to change throughout rooms. Instead, they are defined on the actual usage of the character in the room.

If your character is a unique case, only to be used once, you could also have defined your character inside the room without the template definition, in which case you would have done it like so:

<sburb description='first room'>
  <assets>
    <asset name='meenahSheet' type='graphic'>chars/meenah/meenah.png</asset>
  </assets>

  <rooms>
    <room>
      <character name='meenah' sx='-50' sy='-115' sWidth='100' sHeight='130' width='35' height='25' sheet='meenahSheet' state='walkFront' facing='Front' x='500' y='500'></character>
    </room>
  </rooms>
</sburb>

Here, x='500' and y='500' are defined on the <character> element, since it's being placed directly into a room. The class='meenah' was removed, since it is only used for templating purposes.

Complete file

This is an example of what a complete character file usually looks like. It may include some concepts which have yet to be explained.

<sburb description='meenah'>
  <classes>
    <!-- Default dialog position values -->
    <animation class='meenah-dialog' frameInterval='6' x='-180' y='-524' />

    <!-- Character definition -->
    <character class='meenah' name='meenah' sx='-50' sy='-115' sWidth='100' sHeight='130' width='35' height='25' sheet='meenahSheet' state='walkFront' facing='Front'></character>

    <!-- Common "be" command -->
    <action class='beMeenah' name='Be Meenah.' command='macro'>
      <args>
        <action command='changeChar' noDelay='true'>
          <args>meenah</args>
          <action command='playSong' noDelay='true'>
            <args>meenahSong,0</args>
          </action>
        </action>
      </args>
    </action>
  </classes>

  <assets>
    <!-- the sprite sheet containing all her animations -->
    <asset name='meenahSheet' type='graphic'>chars/meenah/meenah.png</asset>

    <!-- her background music -->
    <asset name='meenahSong' type='audio'>audio/music/muscles.oga;audio/music/muscles.mp3</asset>

    <!-- her dialog sprites -->
    <asset name='meenah_talk' type='graphic'>dialogs/meenah/meenah_talk.png</asset>
    <asset name='meenah_angrytalk' type='graphic'>dialogs/meenah/meenah_angrytalk.png</asset>
    <asset name='meenah_annoyed' type='graphic'>dialogs/meenah/meenah_annoyed.png</asset>
    <asset name='meenah_ohyes' type='graphic'>dialogs/meenah/meenah_ohyes.png</asset>
  </assets>

  <hud>
    <dialogsprites>
      <animation name='meenah_talk' class='meenah-dialog' sheet='meenah_talk' length='2'/>
      <animation name='meenah_angrytalk' class='meenah-dialog' sheet='meenah_angrytalk' length='2'/>
      <animation name='meenah_annoyed' class='meenah-dialog' sheet='meenah_annoyed'/>
      <animation name='meenah_ohyes' class='meenah-dialog' sheet='meenah_ohyes'/>
    </dialogsprites>
  </hud>
</sburb>
