Openbound - Actions

This article focuses on actions in the Sburb game engine. An action is essentially a command with some parameters. They are used for all interactions and usually make up a lot of the code, so make sure that you understand this concept well.

Table Of Contents

• Overview
• Basics
  • Assets
  • Dependencies
  • Rooms
  • Sprites
  • Animations
  • Characters
  • Actions
  • Dialog
  • Dialog sprites
  • Triggers
  • Paths
  • Templates
  • Game State
  • Effects
• Good practice
• Advanced
  • Text colours
• Production
  • Build
  • Release

Structure

Actions are very common and can be found nearly every, though most commonly as a child of a sprite or trigger.

They have the following structure:

<action command='[COMMAND]'>
    <args>[ARGS]</args>
</action>

Some commands do not take arguments. In those situations, the <args> element does not need to be defined.

During some situations, the action may also require a name defined, as such:

<action command='[COMMAND]' name='[NAME]'>
    <args>[ARGS]</args>
</action>

Usage

Action usage is relatively simple. The element is placed inside of the element which calls it. This may be a trigger, a sprite, a character, a sprite button, or another command.

Usage inside of a sprite looks like this, and applies to both triggers, sprites, characters, and sprite buttons:

<sprite>
    <action command='[COMMAND]' name='[NAME]'>
        <args>[ARGS]</args>
    </action>
</sprite>

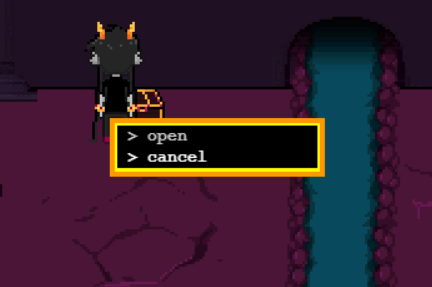

Note the additional attribute name. This defines the name shown to the user in cases where a "chooser" box is shown.

Commands

talk

Activates a dialog. It takes one parameter that is a series of dialogs.

The syntax for this is specified on the dialog page.

randomTalk

Activates a dialog. It takes one parameter that is a series of dialogs.

The syntax for this is specified on the dialog page.

changeRoom

Changes the current room to the specified room, and moves the character to it.

Syntax: "newRoom,newX,newY"

changeRoomRemote

Changes the current room, to the specified room, and moves the character to it. If the specified SburbML file, which presumably contains the room being referenced, is not loaded yet, loads it first.

Syntax: "file,newRoom,newX,newY"

playAnimation / startAnimation

Have the target sprite play the specified animation.

Syntax: sprite, animation

This command also supports "char" in place of "sprite" to play this animation on the player.

changeChar

Change the player's character to the one specified. Also changes the room to the one in which the new character is standing.

Syntax: sprite

changeFocus

Change the sprite the camera is focusing on.

Syntax: sprite

playSong

Make the specified audio asset play as the background music.

Syntax: song

playSound

Make the specified audio asset play as a sound effect.

Syntax: sound

teleport

Calls the changeRoom command, and applies transportalizer effects.

Syntax: changeRoom's syntax.

teleportRemote

Calls the changeRoomRemote command, and applies transportalizer effects.

Syntax: changeRoomRemote's syntax.

playEffect

Play the specified effect at the specified location.

Syntax: effect, x, y

openChest

Open the specified chest, display the specified sprite as its contents, and a message.

Syntax: chest, sprite, message

waitFor

DEPRECATED; DO NOT USE

Take away player control, and wait for the specified trigger.

Syntax: see trigger syntax

macro

Execute an action and wait for all followups to finish.

Syntax: action tag

deltaSprite

Move the sprite from it's current position by the specified amount in pixels.

Syntax: sprite, dx, dy

moveSprite

Move the sprite to the specified location in pixels.

Sytnax: sprite, x, y

addSprite

Add the specified sprite to the specified room. Warning: if this sprite is in another room, it will now be in both!

Syntax: sprite, room

removeSprite

Remove the specified sprite from the specified room. Even if a sprite isn't physically present anywhere, it can still be referenced by name.

Syntax: spriteName, roomName

cloneSprite

Clone the specified sprite with a new name

Syntax: spriteName, newName

playMovie

Play the specified movie asset.

Syntax: movieName

removeMovie

Stops the specified movie asset.

(utility function used internally, not recommended for explicit use)

Syntax: movieName

toggleVolume

Toggle the volume level (100->0->33->66->100). Used by the volume button.

Sytnax: takes no parameters

addAction / addActions

Add the given actions to a sprite.

Syntax: SBURBML Action Syntax

removeAction / removeActions

Remove the given actions from a sprite

Syntax: spriteName, actionName, actionName, actionName, ... Note: Non-determinism may arise if multiple actions have the same name!

presentAction / presentActions

Present the given actions to the user as a set of choices. Note that unlike normal, is not assumed to be a choice.

Syntax: SBURBML Action Syntax

addWalkable

Add the specified path as a walkable to the specified room

Syntax: pathName, roomName

addUnwalkable

Add the specified path as an unwalkable to the specified room

Syntax: pathName, roomName

addMotionPath

Add the specified path as a motionpath to the specified room Syntax: pathName, xtox, xtoy, ytox, ytoy, dx, dy, roomName

removeWalkable

Remove the specified walkable from the specified room Syntax: pathName, roomName

removeUnwalkable

Remove the specified unwalkable from the specified room Syntax: pathName, roomName

walk

Make the character walk in the specified direction

Syntax: charName, direction

Valid directions are "Up", "Down", "Left", "Right", and "None".

openLink

Opens an external link in a new tab

Syntax: url, displayText

openDirect

Opens an external link in a new window

Syntax: url, displayText

save

Save state to client storage

Syntax: isAuto, useLocal

load

Load state from client storage

Syntax: isAuto, useLocal

saveOrLoad

Display save/load options

Syntax: useLocal

loadStateFile

Load in an additional SBURBML file

Syntax: path, keepOld

setGameState

Change global game state

Syntax: gameState, value

goBack

Move the character backwards

Syntax: charName

fadeOut

Fade out to black

Syntax: none

setButtonState

Change the state of the specified button

Syntax: buttonName, state

changeMode

Change the engine mode

Syntax: modeName

Valid mode names are "wander" and "strife".

try

Try to trigger the given triggers in order, if one succeeds, don't do the rest (they are like an else-if chain)

Syntax: SBURBML Trigger Syntax

skipDialog

Skip the current conversation

Syntax: none

follow

Set a character to follow another character

Syntax: followerName, leaderName

unfollow

Set a character to stop following another character

Syntax: followerName

addOverlay

Overlay a sprite over the game area (below the HUD)

Syntax: spriteName

removeOverlay

Remove an overlay

Syntax: spriteName

disableControl

Disables player control

enableControl

Enables player control

sleep

Wait for the specified event before continuing

Syntax: See trigger syntax

pauseActionQueue / pauseActionQueues

Pauses one or more action queues.

Syntax: comma-separated action queue IDs

resumeActionQueue / resumeActionQueues

Resumes one or more previously paused action queues.

Syntax: comma-separated action queue IDs

cancelActionQueue / cancelActionQueues

Cancels one or more action queues.

Syntax: comma-separated action queue IDs

pauseActionQueueGroup / pauseActionQueueGroups

Pauses one or more groups of action queues.

Syntax: comma-separated group names

resumeActionQueueGroup / resumeActionQueueGroups

Resumes one or more previously paused action queues.

Syntax: comma-separated group names

cancelActionQueueGroup / cancelActionQueueGroups

Cancels one or more action queue groups.

Syntax: comma-separated group names

cancel

Takes no parameters, does nothing.
